Pressure hoses

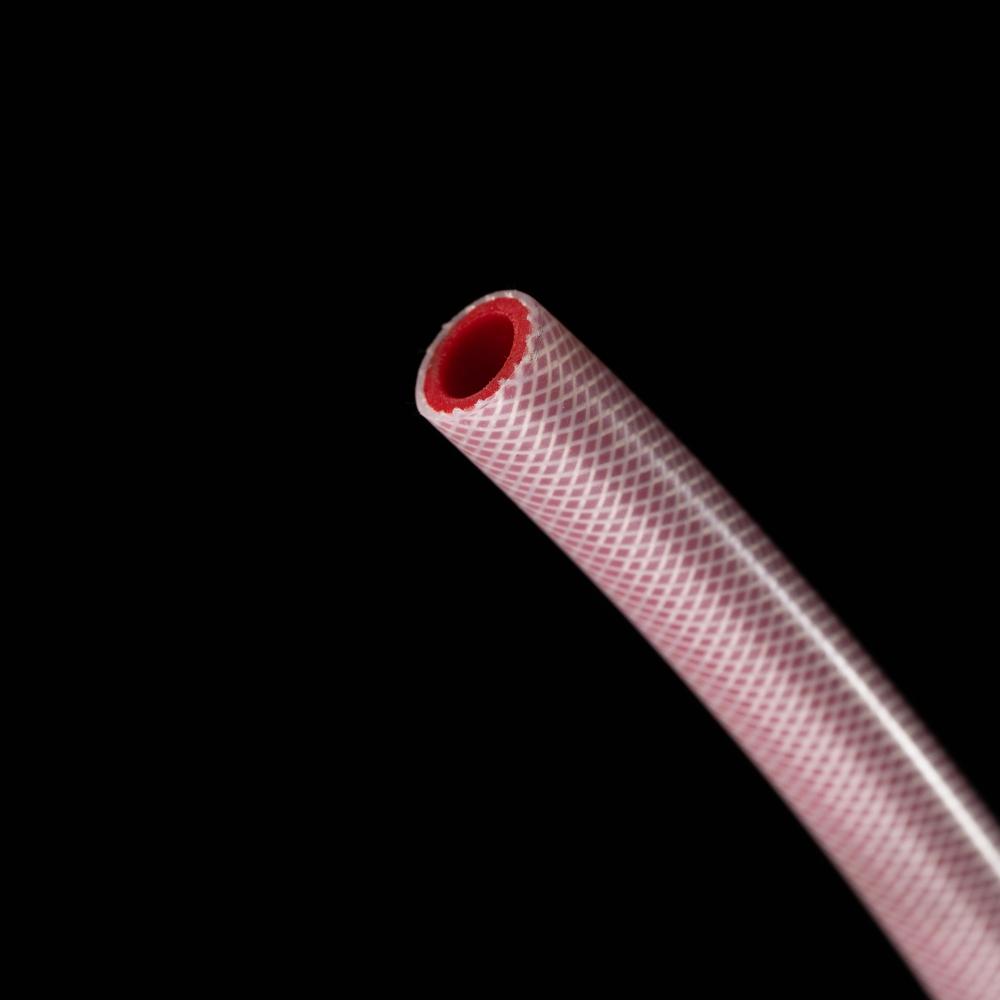

Braided pressure hoses
Braided pressure hoses from BIW are made from a combination of silicone and reinforcement materials, offering excellent resistance to environmental influences and reliable temperature performance up to +180 °C.
- Inside silicone
- Outside reinforcement braid (polyester, glass fibre, aramid)
- Ideal for media routing in pharmaceuticals, laboratories and industry
Material composition
Silicone inside, reinforcement braid outside.
Standard hardness
70 ± 5 Shore A (other hardnesses available on request)
Excellent resistance
Outstanding resistance to aging, UV radiation, ozone and weathering, with good resistance to gamma radiation.
Temperature resistant
Can be used in ranges from -40 °C to +180 °C (depending on type) - for thermally demanding environments.
Versatile dimensions
From delicate laboratory applications to large-volume industrial hoses - available in numerous variants.
Combinable and customisable
Also available with special impregnation or as a high-performance version for extreme applications.
Product description
Our braided pressure hoses feature an inner silicone layer with an outer reinforcement braid made from polyester yarn (multi-filament or mono-filament), glass fibre or aramid, depending on your performance requirements. Thanks to this construction, the hoses are ideally suited for media conveyance in pharmaceutical, laboratory and industrial applications.
Technical data
Materials
Silicone inside, reinforcement braid outside
Inner/outer diameter
3.0 – 50.0 mm
Wall thickness silicone
2.5 – 7.0 mm.
Temperature range
-40 °C to +180 °C
Media resistance
Excellent resistance to aging, UV, ozone and weathering
Customisation
On ring (e.g. 25 m), can be shortened individually
