Cable protection systems

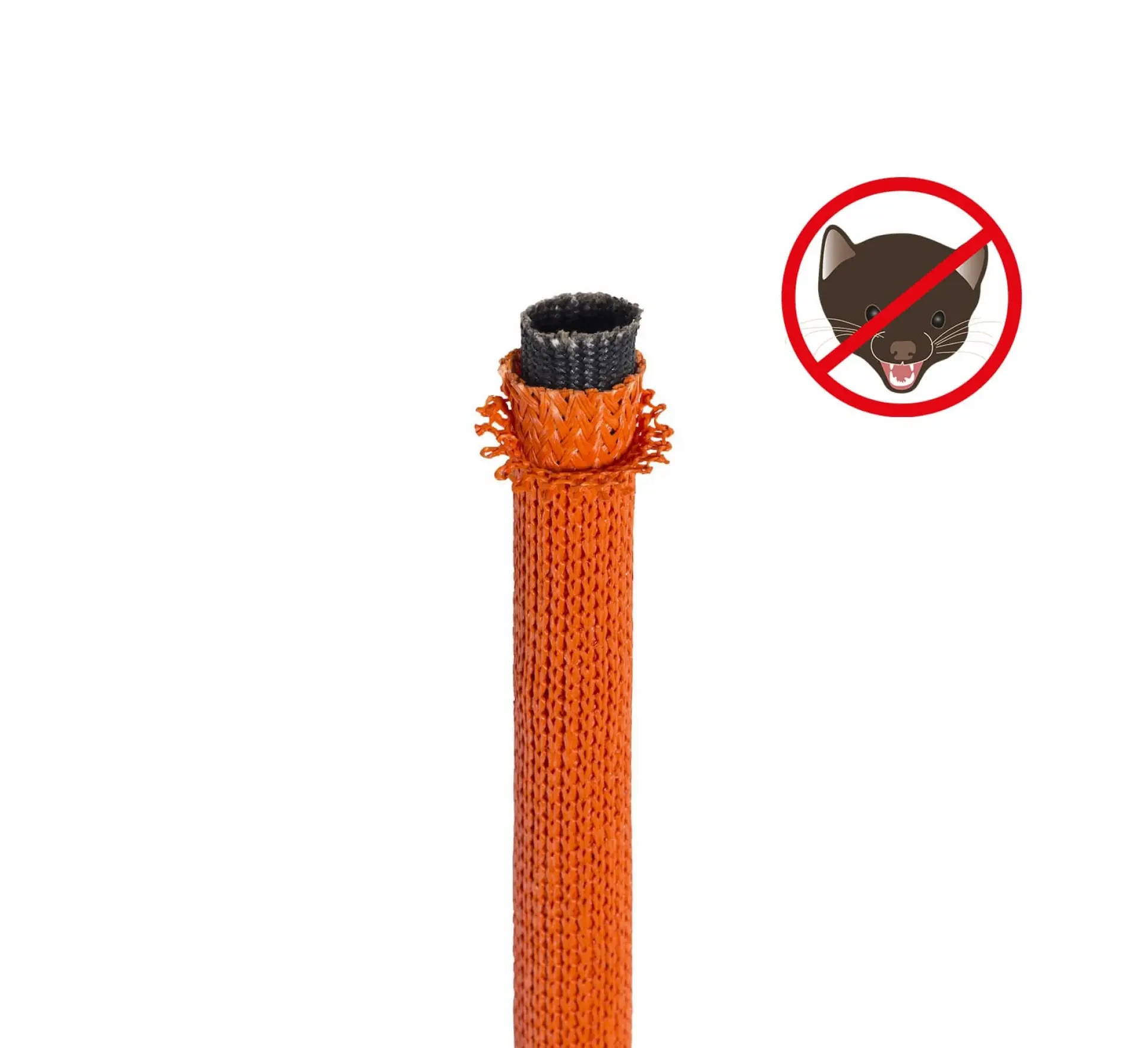

ARA TEXFLEX DUO
TEXFLEX DUO combines robust glass fabric with a high-quality outer coating and offers double protection against thermal and mechanical stress.
- Double-layer construction made of glass fibre and silicone
- Resistant up to +210 °C (briefly up to +235°C)
Similar products
Abrasion protection
ARA-TEX DUO
Abrasion protection
ARA-TEX RI
Abrasion protection
ARA TEXFLEX TRIO
Outstanding thermal insulation
The outer layer protects cables and wires from direct thermal influences.
High abrasion and tear resistance
The textile double construction ensures reliable protection in harsh environments with mechanical loads.
Non-flammable and halogen-free
In accordance with current standards - ideal for applications with high fire protection requirements.
Flexible processing
Good flexibility, simple assembly - even with complex installation requirements.
Weather and UV-resistant
The silicone coating provides lasting protection against environmental influences in outdoor areas.
Double-walled safety
The two layers of fabric provide effective insulation and extended service life for sensitive components.
Product description
TEXFLEX DUO is a textile cable protection system for use under high thermal and mechanical loads. The basic structure consists of an internal glass fibre fabric covered with an elastic silicone or elastomer coating.
It’s preferably used in the automotive industry, in mechanical engineering, in railway technology and by energy suppliers – wherever sensitive cables need to be protected against heat radiation, flying sparks, abrasion or chemical influences. Thanks to its flexibility and wide range of variants, it’s easy to install, even in existing systems or where installation space is limited.
Technical facts
Material
Double-layered glass fibre, silicone or elastomer coating, DUO L with aluminium foil
Temperature range
Permanent up to +210 °C, short-term up to +235 °C
Flame protection
Non-flammable, halogen-free, self-extinguishing
Consistency
UV, weather and chemical resistant
Available versions
Closed, divisible, made up with Velcro/zip fastener
Typical applications
Cable protection in the engine compartment, mechanical and plant engineering, railway & energy technology
